Stuff you should know about Microsoft Enterprise Mobility Suite

Windows 10 Education devices benchmark with Novabench and AS SSD

Here is a comparison chart between a range of Windows 10 Based Education devices.

  • All devices are running Windows 10 1607.
  • They have recently been wiped and waited for windows update to remove all flags in device management
  • Running on battery with more than 60% charge
  • Devices are joined to Intune from OOBE
  • Tests ran 3 times on each device (score is had minor deviations)

The devices range from Pentium to Celeron CPU and from 64 gig to 256 gig SSD. Ram is 4 gig. The results on each device differ marginally each time i run the benchmarking tool.

These devices are all really cheap and start at 1800 NOK before VAT.

Chart (In progress*):

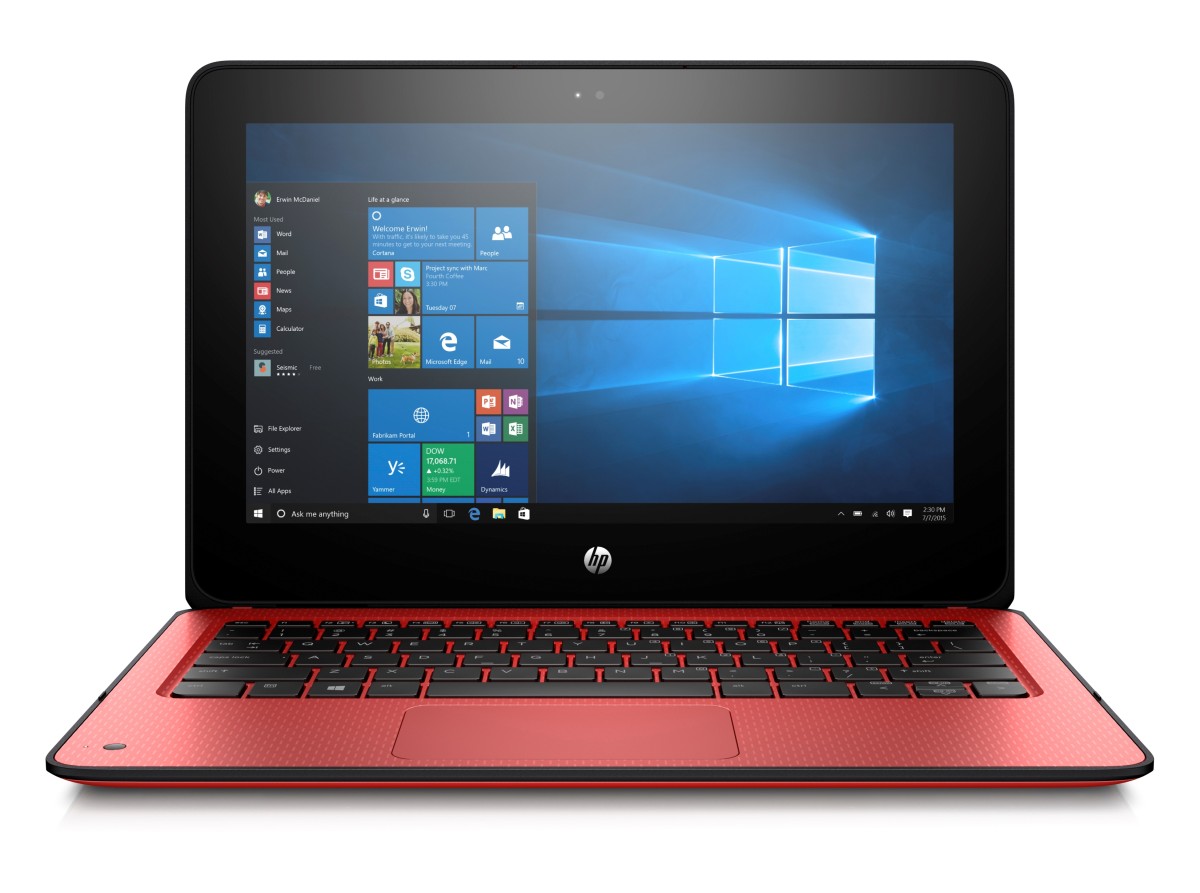

HP X360
HP x360 radiant red

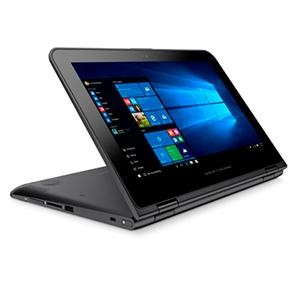

Lenovo N23
lenovo n23 education edition

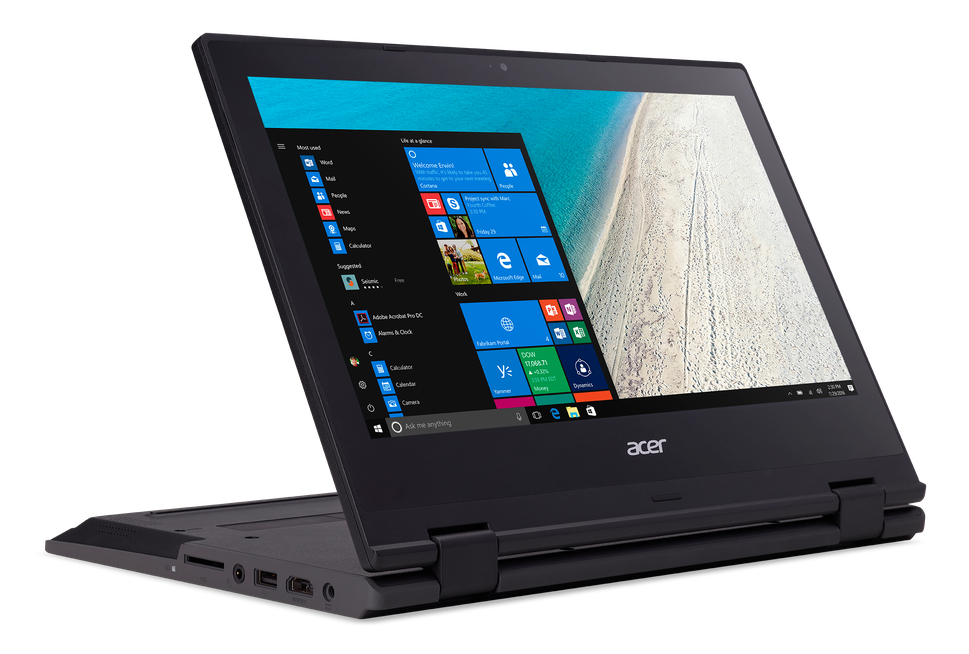

Acer B1 Spin
acer b1 spin education edition
 Lenovo Yoga 11Elenovo yoga 11e edu  HP Stream 11hp stream 11 education  Dell Latitude 3189dell latitude 3189 edu
AS SSD Score  180 1607  153 673
Novabench Score 370  479  333  534
Max price NOK incl. VAT  4081  4081 3500  Not agreed 2500 Not agreed
Specs Intel Celeron – 4/64 Intel Celeron 4/64 Intel Celeron 4/64 Intel Celeron N3450 – 4/128 Intel Celeron N3060 – 4/64  Intel Pentium N4200 – 4/128

What can you learn from this chart? There are difference performance, so having an opinion of what is good enough can save you some extra money when selecting a device. Will the user notice a difference, mabye… or mabye not.

Just keep in mind that a student does not need a super fast disk to write essay’s in word. But he will appreciate the extra power of a better CPU when having a Skype call and editing power point at the same time.

My opinion is that disk speed is the most important aspect of the devices. Even Celeron is good enough.

Here are the individual images from each test:

HP X360

Lenovo Yoga 11E

HP Stream 11

Dell Latitude 3189

Acer B118 Spin

Lenovo N23

Advertisements

Surface Pro 4 Windows 10 Education Edition Intune Enrollment

Here is a video of how long time it takes to unbox, clean and setup a Surface Pro 4 with Windows 10 Education and enroll it into Intune.

To enter Surface UEFI press  pwr on and hold volume up. Release pwr button once you see the device turns on. Keep holding the volume up untill you se the UEFI.

Please keep in mind that these test are real life and include some lag typing in email and passwords plus some clicking. This would be a realistic scenario. This even Includes MFA on enrollment.

Here is a summary of the times:

  • Wipe drive and clean to OOBE – 16 min 57 sec
  • OOBE to Windows – 2 mins 34 sec

Tech specs:

  • 8Gig Ram
  • 256 Gig SSD
  • Intel Pentium I5
  • Windows 10 Education 1607
  • Windows Imaging and Configuration Designer (WICD)

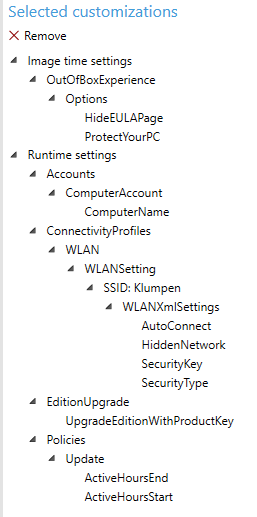

Here are the configurations in WICD:

settings clean

Here is the complete video:

Clean install with WICD

OOBE to Windows

Other tests on EDU devices:

HP X360 Education Edition

Lenovo N23 Education Edition

Acer B118 Spin Education Edition

Acer B118 Spin Education Edition Intune Enrollment

Here is a video of how long time it takes to unbox and setup a Acer B1 Spin with Windows 10 Education and enroll it into Intune.

To enter Acer UEFI press F2 – Here you can enable the F12 Boot menu which is disabled by default.

Here is a summary of the times:

  • Wipe drive and clean to OOBE – 22 min 52 sec
  • OOBE to Windows – 3 mins 31 sec
  • Switch user – 46 sec

Tech specs:

  • 4 Gig Ram
  • 64 Gig SSD
  • Intel Celeron 1,4 GHZ
  • Windows 10 Education 1607
  • Windows Imaging and Configuration Designer (WICD)

Here are the configurations in WICD:

settings clean

Here is the complete video:

Clean install with WICD

OOBE to Windows

New user switch

Other tests on EDU devices:

HP X360 Education Edition

Lenovo N23 Education Edition

*Updated Comparison chart Intune enrollment with Education Devices

Here is the comparison chart for the new Education Devices from HP, Lenovo and Acer.

UPDATED: Lenovo Yoga and Dell Latitude

This should illustrate how long time it takes for a student to setup his PC. On Wipe drive i used WICD, On Intune Enrollment I typed the email and waited for MFA. The actual clean logon without user intervention is much faster. On the new user switch, the device was not prepared with Setup My School PC for true multi user. The time it takes is for Windows to prepare a loaner PC or allow a student to borrow another PC in a 1-1 scenario

Chart:

HP X360

Lenovo N23

Acer B118 Spin

 Surface Pro 4surface pro 4 education Lenovo Yoga 11elenovo yoga 11e edu  Dell Latitude 3189dell latitude 3189 edu
Wipe drive and clean to OOBE  21 min 21 sec  26 min 21 sec  22 min 52 sec  16 min 57 sec  19 min 14 sec  21 min 58 sec
OOBE to Windows  4 min 7 sec  4 min 46 sec  3 min 31 sec  2 min 34 sec  4 min 46 sec  3 min 58 sec
Switch to new user  34 sec  56 sec  46 sec  34 sec 35 sec
Specs Intel Pentium 4/128 Intel Celeron 4/64 Intel Celeron 4/64  Intel Core i5 8/256  Intel Pentium 4/128  Intel Celeron 4/128

Note that during the OOBE and user switching i actually typed in information, hence the benchmark is subject to my typing speed.

Here are the individual tests:

HP x360 EE

Lenovo N23

Acer B118 Spin

Surface Pro 4

Lenovo N23 Education Edition Intune Enrollment

Here is a video of how long time it takes to unbox and setup a Lenovo N23 Education Edition with Windows 10 Education and enroll it into Intune.

To access the UEFI Boot menu Press F12 during boot

Here is a summary of the times:

  • Wipe drive and clean to OOBE – 26 mins 21sec
  • OOBE to Windows – 4 mins 46 sec
  • Switch to a new user (first time logon) – 56 sec

Tech specs:

  • 4 Gig Ram
  • 64 Gig SSD
  • Intel Celeron 1,4 GHZ
  • Windows 10 Education 1607
  • Windows Imaging and Configuration Designer (WICD)

Here are the configurations in WICD:

settings clean

Here is the videos:

Clean install

Intune Enrollment

New user switch

Other tests on EDU devices:

HP X360 Education Edition

Acer B118 Spin

HP X360 Education Edition Intune Enrollment

Here is a video of how long time it takes to unbox and setup a HP X360 ProBook G1 EE with Windows 10 Education and enroll it into Intune. You do not have to clean this device. It comes with a clean Win 10 Pro EDU image and is ready for the classroom.

If you have to clean the device using WICD/USB then Boot selection / Boot menu is the F9 key

HP ProBook X360 G1 Education Edition UEFI  / BIOS menu is the Esc key.



Here is a summary of the times:

  • Wipe drive and clean to OOBE – 21 mins 21 sec
  • OOBE to Windows – 4 mins 7 sec
  • Switch to a new user – 34 sec

Tech specs:

  • 4 Gig Ram
  • 128 Gig SSD
  • Intel Pentium 1,4 GHZ
  • Windows 10 Education 1607
  • Windows Imaging and Configuration Designer (WICD)

Here are the configurations in WICD:

settings clean

Here is the videos:

Clean install

Intune Enrollment

New user switch

 Other tests on EDU devices:

Acer Switch B1

Lenovo N23

Microsoft Advanced Threat Analytics – False positive

The scenario here is that a company has hired an external consultant. The consultant was on vacation and sick for a total of about 1 month.

Once back at work he started accessing the system and doing this work. Immediately ATA became suspicious and sendt out an alert.

mail-warning-ata

ATA flagged the behavior as abnormal due to the consultant being away for such a long period of time.

identity-theft-ata

This said, a lot of companies are not closing down consultant accounts after they are done working. Some keep them open waiting for “next incident” and some just forget to remove them.

ATA can help you to keep track of this and alerts you if a old consultancy account is stolen.

Intune for Education portal

Yay, the new Intune Education Portal is live. you find it here:

It has:

  • Role-based security (create admins for a region or school)
  • HTML5 support
  • SDS integration
  • Granular deployment for schools
  • ++++ much more

https://intuneeducation.portal.azure.com

portal-not-accessible

If you do not have access, just wait. You get a notification in the old silverlight portal when you can migrate.

Dont want to wait; simply create a new trial to check this out: https://www.microsoft.com/en-us/cloud-platform/enterprise-mobility-security-trial



More info here: https://blogs.technet.microsoft.com/enterprisemobility/2017/01/24/perspectives-on-the-new-intune-console/



Deploy OneNote learning tools with Intune

Great news, Learning tools come as an MSI package!

This is how you use Intune to deploy OneNote learning toolslearning-tools-bar

  1. Download the tool from http://onenote.com/learningtools
  2. other-downloadmore-info
    choose-language
    you can change language to Norsk

    save-msi
    save it
  3. go to http://manage.microsoft.comappsadd-appadd-app-settings



If you are updating machines use the following argument:

  • REINSTALL=ALL REINSTALLMODE=vomus REBOOT=ReallySuppress UILevel=2

If you are installing fresh use the following argument:

  • LearningTools.msi /quiet /norestart
